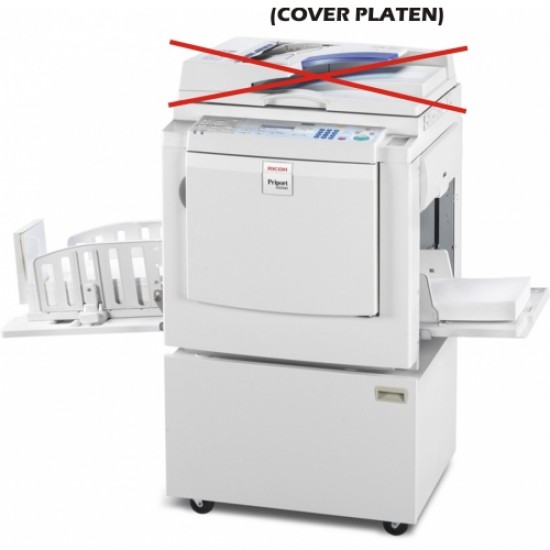

RICOH COPIER DUPLIC PRIPORT DX3343 130PPM 11X17

SPECIFICATIONS:

RICOH COPIER DUPLIC PRIPORT DX3343 130PPM 11X17

Type: Digital, desktop

Printing process: Press roller system, full automatic one drum

system

Originals: Sheets/books

Original size: Platen glass: Maximum: 297 x 432 mm

ADF: Minimum: 105 x 128 mm

Maximum: 297 x 432 mm

Print paper size: Minimum: 90 x 140 mm

Maximum: 297 x 420 mm (A3 paper feed

mode)

Print paper weight: 47 - 209 g/m²

A3 paper feed mode: DX 3343: 52 - 81 g/m²

DX 3443: 52 - 157 g/m²

Print area: 210 x 288 mm (A4 drum)/250 x 355 mm (B4

drum)

Print speed: 80 - 100 - 130 sheets per minute (3 steps)

A3 paper feed mode: 80 sheets per minute

First print speed: Less than 34 seconds (A4)

Resolution: 300 dpi (Fine mode: 300 x 400 dpi)

Image modes: Letter, photo, letter/photo (auto separation),

pale, pencil

Image position: Vertical: ± 10 mm

Horizontal: ± 10 mm

A3 paper feed mode: Vertical: -20/-10 mm

fixed

Horizontal: Fixed

Reproduction ratios: 4 reductions: 71, 82, 87, 93%

3 enlargements: 115, 122, 141%

Colour printing: By replacing colour drum

Paper feed table capacity: 1,000 sheets (80 g/m²)

Delivery table capacity: 1,000 sheets (80 g/m²)

A3 paper feed mode: 500 sheets (80 g/m²)

Power source: DX 3343 110 - 120 V, 50 - 60 Hz

DX 3443 220 - 240 V, 50 - 60 Hz

Power consumption: Maximum: Master making: 210 W

Printing: 185 W (at 130 sheets per minute)

Energy saver mode: Less than 7.6 W

Dimensions (W x D x H): With platen cover: 1,224 x 681 x 633 mm

With ADF: 1,224 x 681 x 686 mm

Weight: With platen cover: 71 kg

With ADF: 76 kg
